UHMWP
- Ultra-high molecular weight polyethylene is a linear thermoplastic engineering plastic. Its core characteristic is extremely high molecular weight, typically above 1.5 million. This ultra-long molecular chain structure endows it with a series of exceptionally superior properties, making it an ideal alternative to metals, other plastics, and even ceramics in many harsh operating conditions.

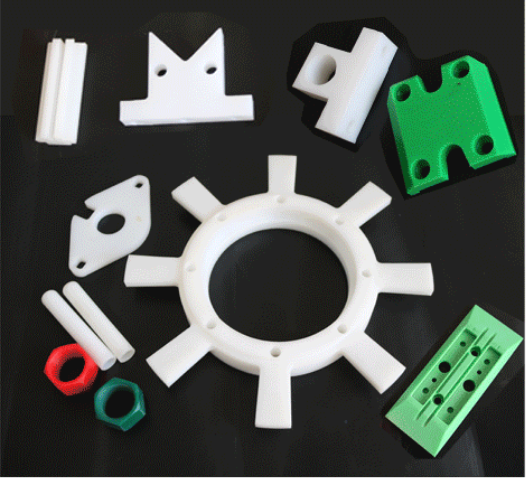

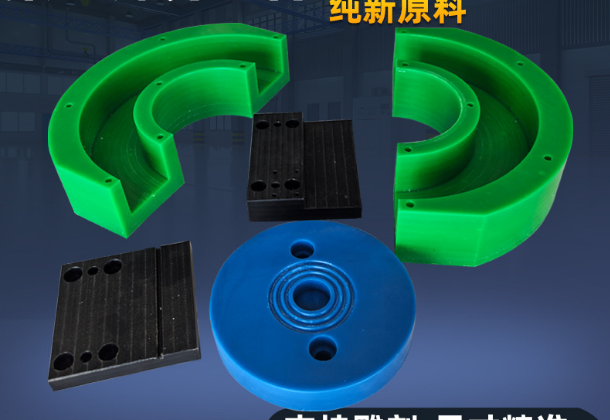

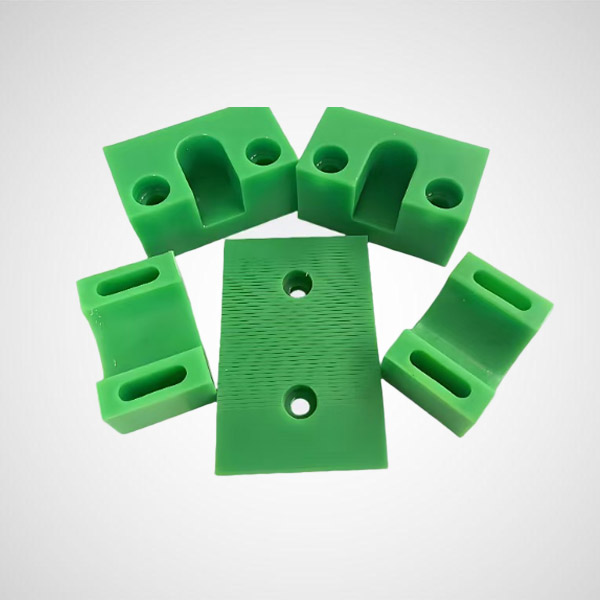

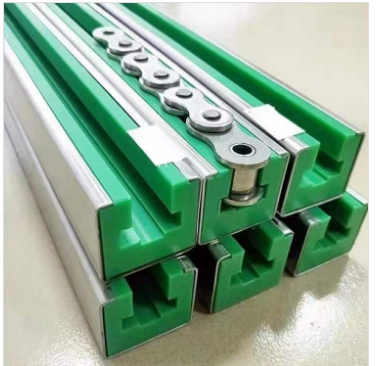

UHMWPE COMPONENTS
Request InformationProduct Details
Our professional team will help you solve all product customization issues.
Four-Dimensional Customization Capability:
Engineering Breakthroughs Across All Parameters
1. Extreme Size Mastery
Ultra-Thick Components (>200mm):
Compression-molded support blocks (e.g., 480×300×230mm for Jiangxi Copper) withstand 34+ months in mining vibrating screens with zero deformation.Precision Thin-Walled Parts (δ = 1.5mm ± 0.2):
Photovoltaic silicon wafer sorter guide rails maintain <0.05mm/m flatness under dynamic loads.
2. Advanced Material Modification
| Scenario | Innovation | Result |
|---|---|---|
| Food Production Lines | Medical-grade sulfur-free polymers | ⬇️ 78% microorganism adhesion |
| Acid Pickling Tanks | Nano-titanium dioxide reinforcement | ✅ 5x lifespan in 98% H₂SO₄ |
| Coal Transport Systems | Anti-static + coal-lubricant blend | ⬇️ 90% clogging frequency |
3. Ultra-Precision Machining
Complex Geometry: ±0.05mm tolerance on 5-axis waterjet-cut surfaces (e.g., screw conveyor blades).
Deep-Hole Expertise: L/D > 30 guide sleeves with 0.1mm/m straightness for tunnel boring hydraulics.
4. Collaborative Engineering
FEA-Driven Design: Predicts stress concentrations in 1000-ton unloader sliders pre-production.
Real-World Validation: Tests components in -50°C to 80°C environmental chambers (polar/desert simulation).

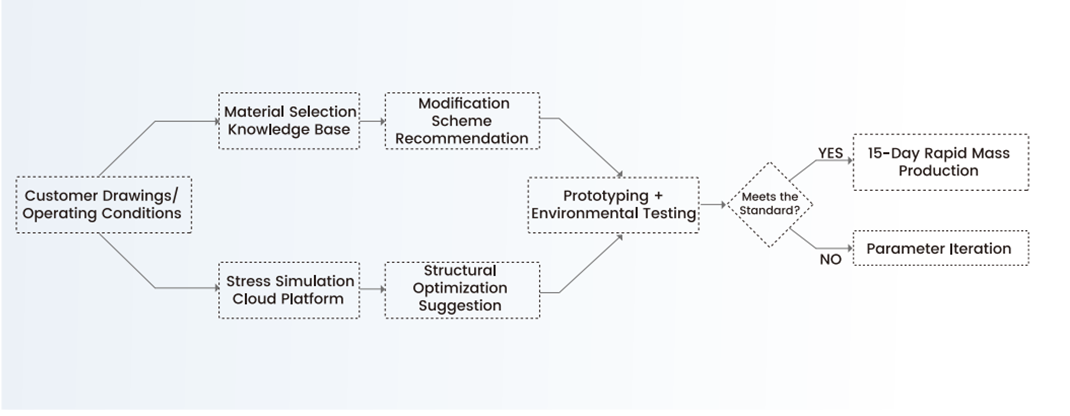

Customer Value Delivery Framework
