HEAVY DUTY GROUND PROTECTION MAT

Specification Parameters

1. Dimensions

• Length

• Standard: 2440 mm

• Common: 1220 mm, 2000 mm, 3000 mm

• Custom: ≥4000 mm (up to 5000 mm+ available)

• Width

• Standard: 1220 mm (typically paired with 2440 mm length)

• Common: 1000 mm, 1500 mm

• Custom: 2000–2500 mm (standard custom range); up to 3000 mm (special order)

• Thickness

• 15 mm – Light duty

• 20 mm – Light+

• 25 mm – Medium

• 30 mm – Medium+

• 38 mm – Heavy

• 50 mm – Extra heavy

• Standard Grades:

• Custom Thickness: 60–80 mm+ (extreme heavy duty)
         Note: Thickness directly governs load capacity. Panels >50 mm require specialized manufacturing and exhibit significantly higher weight.

2. Load Capacity (Dynamic Wheel Load – Typical Applications)

• 15 mm (Light Duty): 1.5–3 t – Pedestrian zones, light carts, event lawns

• 20 mm (Light+): 3–5 t – Golf carts, UTVs, ATVs, small service vehicles

• 25 mm (Medium): 5–12 t – General site access, light forklifts, temporary parking, events

• 30 mm (Medium+): 12–25 t – Medium-duty trucks, loaded forklifts, compact excavators

• 38 mm (Heavy): 25–50 t – Large dump trucks, heavy forklifts, standard excavators/loaders

• 50 mm (Extra Heavy): 50–70+ t – Ultra-heavy haulers, large hydraulic excavators, crawler cranes

• >60 mm (Extreme Heavy): 80–120+ t – Mining trucks, mega cranes
     Note: Requires custom formulation and reinforced processing.

Material & Surface Options

1. Core Material

• HDPE (High-Density Polyethylene)

• Virgin HDPE: Consistent mechanical properties, uniform color, optimal durability

• Recycled HDPE: Environmentally sustainable, cost-effective; recommended for thicknesses ≥25 mm

2. Surface Treatment

• Regular anti-slip pattern (diamond or cross-grid – most common)

• Turf/grass texture (enhanced aesthetics, lawn protection, high friction)

• Specialized finishes: antistatic, enhanced flame retardancy (upon request)

3. Color Options

• Standard: Black (industrial), Green (landscape), Grey (neutral), Yellow (safety marking)

• Custom colors available for volume orders

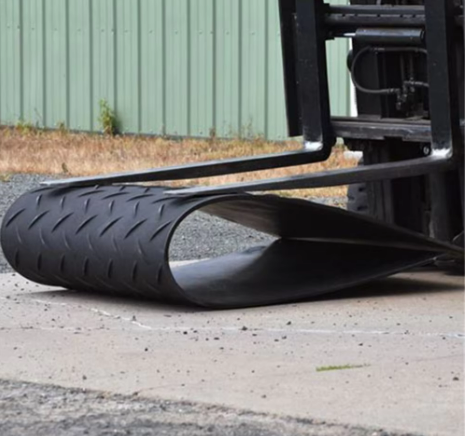

Heavy-duty paving mats are engineered for the heaviest loads—up to 200 tons—and offer excellent corrosion resistance, impact resistance, and UV stability. They exhibit a degree of flexibility and elasticity, allowing them to bend without breaking, and resist cracking or delamination. Environmentally friendly and fully recyclable, these mats feature anti-slip surface patterns that enhance ground adhesion and improve slip resistance. Their design effectively distributes load weight, reduces lateral slippage, and ensures stable performance even on slopes—making them ideal for vehicles and heavy equipment operation.

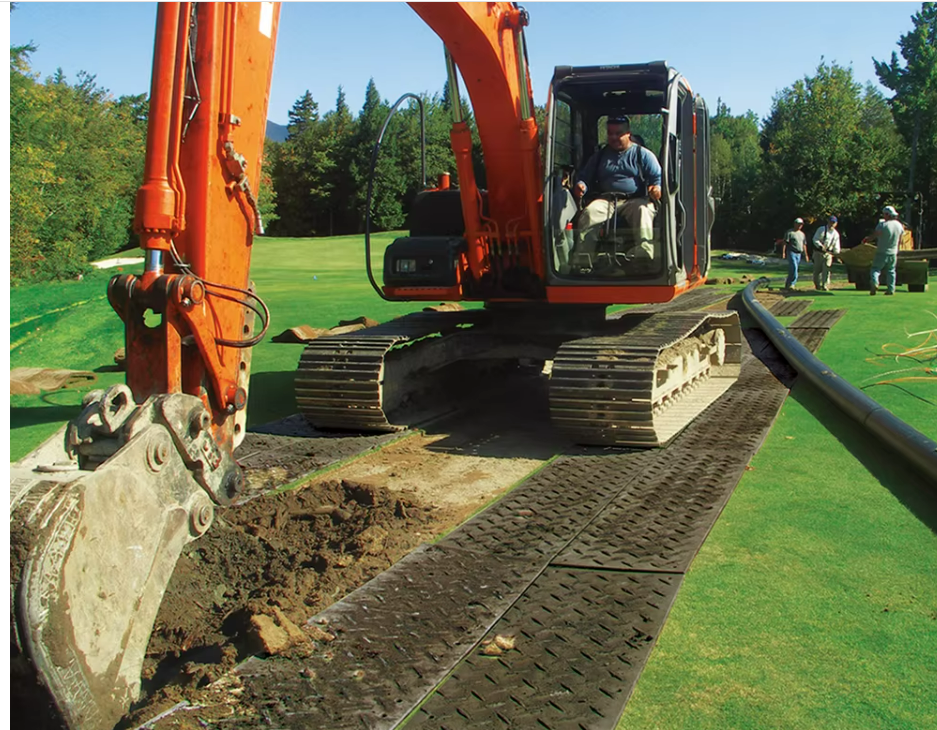

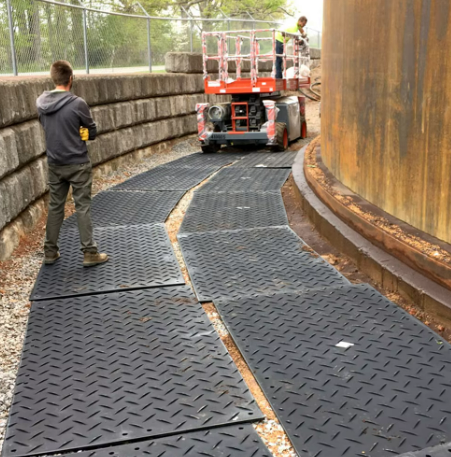

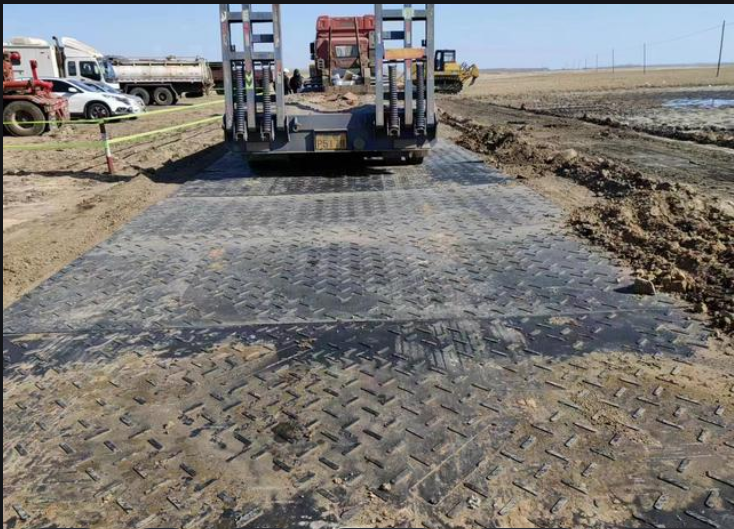

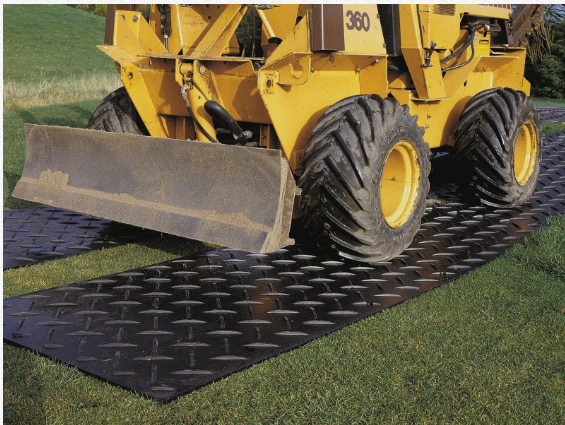

Heavy-duty paving mats ensure safety throughout construction projects by enabling the rapid deployment of temporary access roads with a secure, durable surface. They serve as the optimal replacement for conventional temporary road mats and are widely used across industries such as construction, ports, airports, mining, petroleum, maritime navigation, and agriculture—for creating trackways, work platforms, and compound areas.

The entire product range is customizable, and our technical department provides full support for development and tailored solutions.
